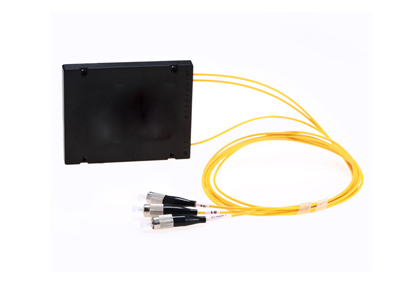

1x2 & 2x2 PLC Splitter ABS Module
- Small size and aesthetic appearance;
SC adapter interface default,can change interface type;
By the demand of customer;
Installation quick,reliable performance,stability;
Satisfy with industry standards YD/T893 and YD/T1117.
Detail
Contact Us
1x2 & 2x2 PLC Splitter ABS Module
Specifications:
● 1x2, 2x2 ABS Black box PLC splitter;
● PLC Splitter is Based on the Planar Waveguide Technology.
Features:
● Small size and aesthetic appearance; ● SC adapter interface default,can change interface type; ● By the demand of customer; ● Installation quick,reliable performance,stability; ● Satisfy with industry standards YD/T893 and YD/T1117. |  |
Applications:
● Installed in 19"standard rack;
● Equipment to be installed is a cable transfer box when the fiber branches in home;
● Equipment to be installed is a customized box when the fiber branches in home.
Performance Specifications
1×2 PLC Splitter (Measured at room temperature and excludes connector loss)
| TYPE | 1*2 | ||
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||
| Operating Wavelength(nm) | 1260～1650 | ||
| Insertion Loss(dB) | Typical | 3.6 | |
| Max | 4 | ||
| Loss Uniformity(dB) | Max | 0.7 | |
| Polariation Dependent Loss(dB) | Max | 0.2 | |
| Directivity(dB) | ≥55 | ||
| Return Loss (dB) | UPC:50 APC:55 | ||
| Operating Temperature (°C) | -40～+85 | Storage Temperature (°C) | |
2×2 PLC Splitter (Measured at room temperature and excludes connector loss)
| TYPE | 2*2 | ||
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||
| Operating Wavelength(nm) | 1260～1650 | ||
| Insertion Loss(dB) | Typical | 4 | |
| Max | 4.5 | ||
| Loss Uniformity(dB) | Max | 0.8 | |
| Polariation Dependent Loss(dB) | Max | 0.3 | |
| Directivity(dB) | ≥55 | ||
| Return Loss (dB) | UPC:50 APC:55 | ||
| Operating Temperature (°C) | -40～+85 | Storage Temperature (°C) | |
1×2 PLC Splitter (Measured at room temperature and includes connector loss)
| TYPE | 1*2 | ||
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||
| Operating Wavelength(nm) | 1260～1650 | ||
| Insertion Loss(dB) | Typical | 4 | |
| Max | 4.5 | ||
| Loss Uniformity(dB) | Max | 0.7 | |
| Polariation Dependent Loss(dB) | Max | 0.2 | |
| Directivity(dB) | ≥55 | ||
| Return Loss (dB) | UPC:50 APC:55 | ||
| Operating Temperature (°C) | -40～+85 | Storage Temperature (°C) | |
2×2 PLC Splitter (Measured at room temperature and includes connector loss)
| TYPE | 2*2 | ||
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||
| Operating Wavelength(nm) | 1260～1650 | ||
| Insertion Loss(dB) | Typical | 4 | |
| Max | 4.5 | ||
| Loss Uniformity(dB) | Max | 0.8 | |
| Polariation Dependent Loss(dB) | Max | 0.3 | |
| Directivity(dB) | ≥55 | ||
| Return Loss (dB) | UPC:50 APC:55 | ||
| Operating Temperature (°C) | -40～+85 | Storage Temperature (°C) | |
