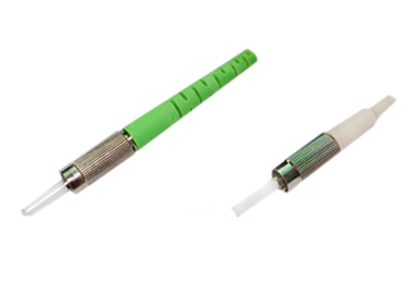

DIN Connector
APPLICATIONS:
● CATV ● Active device termination ● Telecommunication networks ● Metro ● Local Area Networks (LANs) ● Data processing networks ● Test equipment ● Premise installations ● Wide Area Networks (WANs) |  |
FEATURES:
● Corrosion resistant body
● Boots in a variety of colors
● Free-floating ceramic ferrule
● Low insertion loss and back reflection loss
STANDARDS:
All components of/and the final product are designed and tested to conform the requirements of IEC60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO /IEC 118012nd Ed., EN 50173, JIS C5973 F04, ICEA-596, IEC60793-2-10 A1a, ITU-T G.651 or IEC60793-2-10A1b or ITU-T G.652 (depending on fiber), Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL1666/901 (UL-cable) and EIA/TIA455
AVAILABILITY:
● The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
● Housing kits without ferrule are available.
● DIN/APC connector available
Single mode | Multimode | |
Insertion Loss | ≤0.30dB | ≤0.30dB |
Return Loss | ≥50 dB (PC) ≥60 dB (APC) | |
Durability | 0.1 dB typical change, 500 matings | |
Operating Temperature | -40 to + 85°C | -40 to + 85°C |
Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: ≤3.0μm |
125.5+1/-0μm, Concentricity: ≤1.0μm | 144μm, Concentricity: ≤3.0μm | |
126.0+1/-0μm, Concentricity: ≤1.0μm |
