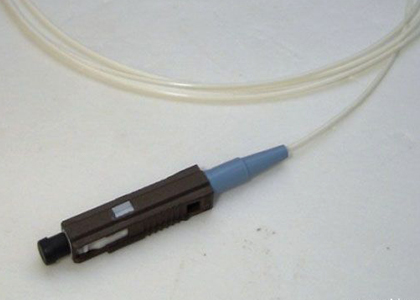

MU Pigtail

●  PC, UPC or APC polishing

●  Fiber Standards:

●  Single mode fiber: ITU - T G. 652

●  Multi mode fiber: ITU - T G.651

●  Standard: Telcordia GR-326-CORE

●  Standard housing, ceramic ferrule

●  Cable diameter: 3.0mm or 2.0mm or 0.9mm

●  Fiber type: 9/125μm, 62.5/125μm or 50/125μm or 10G

●  Insertion loss: SM Less than 0.3 dB, MM Less than 0.3dB

●  Return loss: PC SM larger than 45 dB

●  UPC SM larger than 50dB

●  APC SM larger than 60dB

●  UPC MM larger than 20dB

●  Repeatability: Less than 0.2 dB

●  Changeability: Less than 0.1 dB

●  Operating temperature range: -40°C ~ 80°C

●  Storage temperature range: -40°C ~80°C

●  Tensile strength: 100N

●  Min. bending radius: 35mm
