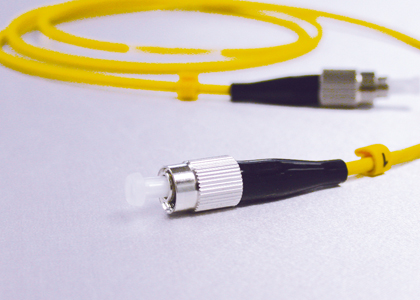

FC Patch cord
- CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
Detail
Contact Us
FC Patch cord
APPLICATIONS:
● CATV ● Telecommunication networks ● Active device termination ● Metro ● Local Area Networks (LANs) ● Data processing networks ● Test equipment ● Premise installations ● Wide Area Networks (WANs) |
|
FEATURES:
● Low insertion loss and back reflection loss ● Good exchangeability ● Good Durability | ● High temperature stability ● Standard: Telcordia GR-326-CORE |
AVAILABILITY
● Simplex/Duplex patch-cord available ● Fan-out available | ● Pigtail available ● Various boot (cable) sizes available |
SPECIFICATIONS:
Single mode | Multimode | |
Insertion Loss | Typical <=0.2dB, Maximum<=0.3dB | ≤0.25dB |
Return Loss | ≥50 dB (PC) ≥60 dB (APC) | |
Repeatability | ≤0.1 | |
Durability | ≤0.2 dB typical change, 1000 matings | |
Interchangeability | ≤0.2dB | |
Tensile strength | >70N | |
Operating Temperature | -20 to + 70°C | -20 to + 70°C |
ORDERING OPTIONS
| Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
| 0.9mm | Black | 9/125μm (SM) | Simplex | PC | Customized |
| 2.0mm | Green | 50/125μm (MM) | Duplex | APC | |
| 3.0mm | Red | 62.5/125μm (MM) | Fan-out (4f) | ||
| Fan-out (6f) | |||||
| Fan-out (8f) |
Inquire：FC Patch cord
