1 x 4 & 2 x 4 PLC Splitter ABS Module

  • Small size and aesthetic appearance;
    SC adapter interface default,can change interface type;
    By the demand of customer;
    Installation quick,reliable performance,stability;
    Satisfy with industry standards YD/T893 and YD/T1117.
  • Detail

  • Contact Us

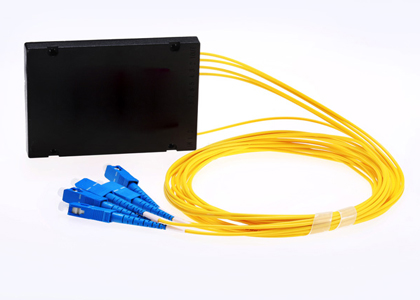

1 x 4 & 2 x 4 PLC Splitter ABS Module


Description:

●  1x4, 2x4 ABS Black box PLC splitter;

●  PLC Splitter is Based on the Planar Waveguide Technology.


Features:

●  Small size and aesthetic appearance;

●  SC adapter interface default,can change interface type;

●  By the demand of customer;
●  Installation quick,reliable performance,stability;

●  Satisfy with industry standards YD/T893 and YD/T1117.

Applications:

●  Installed in 19" standard rack;

●  Equipment to be installed is a cable transfer box when the fiber branches in home;

●  Equipment to be installed is a customized box when the fiber branches in home.


Performance Specifications

1×4 PLC Splitter (Measured at room temperature and excludes connector loss)


TYPE1*4
Fiber Type9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)1260~1650
Insertion Loss(dB)Typical6.8

Max7.5
Loss Uniformity(dB)Max0.7
Polariation Dependent Loss(dB)Max0.2
Directivity(dB)≥55
Return Loss (dB)UPC:50  APC:55
Operating  Temperature (°C)-40~+85Storage Temperature (°C)


2×4 PLC Splitter (Measured at room temperature and excludes connector loss)

TYPE2*4
Fiber Type9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)1260~1650
Insertion Loss(dB)Typical7.4
Max7.8
Loss Uniformity(dB)Max1.4
Polariation Dependent Loss(dB)Max0.3
Directivity(dB)≥55
Return Loss (dB)UPC:50  APC:55
Operating  Temperature (°C)-40~+85Storage Temperature (°C)


1×4 PLC Splitter (Measured at room temperature and includes connector loss)

TYPE1*4
Fiber Type9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)1260~1650
Insertion Loss(dB)Typical7

Max8
Loss Uniformity(dB)Max0.7
Polariation Dependent Loss(dB)Max0.2
Directivity(dB)≥55
Return Loss (dB)UPC:50  APC:55
Operating  Temperature (°C)-40~+85Storage Temperature (°C)


2×4 PLC Splitter (Measured at room temperature and includes connector loss)


TYPE 2*4
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 7.9

Max 8.3
Loss Uniformity(dB) Max 1.4
Polariation Dependent Loss(dB) Max0.3
Directivity(dB) ≥55
Return Loss (dB)UPC:50  APC:55
Operating  Temperature (°C)-40~+85Storage Temperature (°C)
