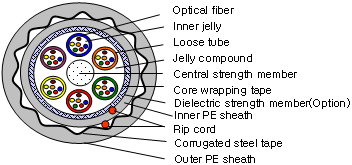

Steel Tape Armor, Double Jacket |
|
| |
|
 |
|
*Application |
| |
Local area network
Long haul communication system
Subscriber network system
Junction communication system |
| |
|
|
*Features |
| |
Essential for Duct & Lashed aerial installation
Essential for Lashed aerial installation
Extinguishable for color of fiber & loose tube
Essential for anti-rodent
Rip cord for easy jacket removal
UV-resistant outer jacket | |
|
*Application |
*Option |
|
 |
|
Fiber : Single Mode (ITU-T G.652 B, D)
Multi Mode (50/125, 62.5/125)
Central Strength Member : Metallic,
Non-metallic
Cable core : 2 ~ 288Core
Sheath : PE, Flame retardant PE |
| |
|
|
*Cable Data |
|
Items |
No. of
Loose tube |
No. of fiber per
Loose tube |
Diameter
(mm) |
Weight
(kg.km) |
Bending redius |
|
With Load(mm) |
No Load(mm) |
|
2~36Core |
1~6 |
1~6 |
14.0 |
210 |
280 |
140 |
|
38~72Core |
1~6 |
1~12 |
14.5 |
230 |
290 |
145 |
|
74~96Core |
7~8 |
1~12 |
16.5 |
280 |
330 |
165 |
|
98~120Core |
9~10 |
1~12 |
18.0 |
325 |
360 |
180 |
|
122~144Core |
11~12 |
1~12 |
19.5 |
400 |
390 |
195 |
|
146~288Core |
13~24 |
1~12 |
23.0 |
510 |
460 |
230 | |
| |
|
*Cable Performance |
⒐ Max. Tensile Load : 2700N
⒐ Crush resistance : 200N/cm
⒐ Temperature range
| |
Installation
Operation
Storage |
: -30∑C ~ +60∑C (-22∑F ~ +140∑F)
: -40∑C ~ +70∑C (-40∑F ~ +158∑F)
: -40∑C ~ +70∑C (-40∑F ~ +158∑F) | | |
| |
| |
